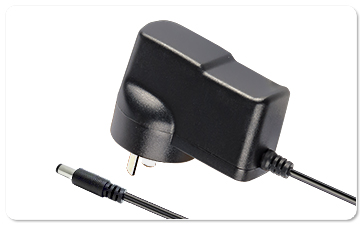

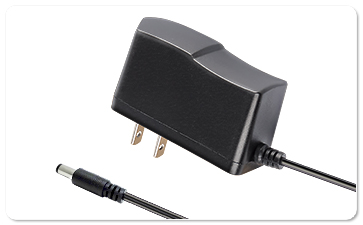

Ultra-low Standby Power Consumption of 9V1.5A Power Adapter,100~240V Input,13.5W 9V1.5A ac dc power adapter meets energy efficiency level VI standard
9V1.5A AC-DC Adapter Dc Power Jack: （On request）
9V1.5A AC-DC Adapter Product Description :
[Model]:ABT0150090 [Brand]:ABT (Accept OEM ODM Order) [power]:13.5W [Input Voltage]:AC 100-240V/47-63 Hz [Output Voltage]:DC 9V1.5A [Color]:White / Black（On request） [Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
Meet all related safety standard,Ultra low no-load/standby power consumption,
meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.
9V1.5A AC-DC Adapter Product Parameters :
[9V1.5A AC-DC Adapter Size]: ① 74*40*30mm ② 73*26.5*42mm [9V1.5A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
Short Circuit Protection. [9V1.5A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
MTBF: According to MIL-HDBK-217F Standard, Full Load,
25 ℃, More Than 50000 Hours.
9V1.5A AC-DC Adapter Product Features :
Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment. Well Designed, Lightweight Beautiful Appearance, And Competitive Price.
Low Empty Load And Standby Energy Loss, In Line With The CEC Standard.
Ultra-safe Design, In Line With Safety Certification Of Different Countries.
9V1.5A Adapter Highly Efficient Circuit Design, Stable Performance, Low Temperature.
Humanity Directed Power Working Status.
9V1.5A AC-DC Adapter Application:
9V1.5A AC/DC Adaptor for digital photo frame 100-240V AC to DC 9V 1.5A CCTV Cam Power adapter LED Lights 9V1.5A AC-DC Adapter Power Supply HDD Enclosure 9V1.5A AC-DC Adapter Power Supply ADSL AC-DC Adapter Power Supply DPF AC-DC Adapter Power Supply 9V 1.5A DC/AC CCTV Camera Power Supply Switch Adapter Portable DVD AC-DC Adapter Power Supply Stereo AC-DC Adapter Power Supply Radio AC-DC Adapter Power Supply Networking Security System Products Etc AC-DC Adapter Power Supply Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply LCD Television 9V1.5A AC-DC Adapter Power Supply 9V1.5A power adapter wall mount type with UL,CEC,FCC,BSMI,CB,CE,LVD,TUV,C-TICK,3C
